Layer 2-based Wireless Relay Network for Robot Control under Non Line-of-Sight Environments

- Successfully Demonstrated a Remote Control for Small Unmanned Ground Vehicle beyond the Line-of-Sight via a Hovering Drone -

(Translation of AIST press release on July 25, 2016)
National Institute of Information and Communications Technology
National Institute of Advanced Industrial Science and Technology
Japan Science and Technology Agency
Bureau of Science, Technology and Innovation, Cabinet Office

Summary

  • We developed a wireless relay communication technology via other robots to control robots beyond the sight.
  • It maintains the control link continuously when the relay route changed due to the movement of the robots.
  • It supports a stable operation for remotely controlled robots in a poor radio propagation environment.



The National Institute of Information and Communications Technology (NICT, President: Dr. Masao Sakauchi) and National Institute of Advanced Industrial Science and Technology (AIST, President: Dr. Ryoji Chubachi) developed a layer 2 (medium access control layer)-based wireless relay communication technology to control a target robot beyond the line-of-sight via other robots as of July 25, 2016. The development is supported by a project, “Tough Robotics Challenge” (program manager: Prof. Satoshi Tadokoro), in the ImPACT (Impulsing Paradigm Change through Disruptive Technologies Program), which is promoted by the Council for Science, Technology and Innovation of the Cabinet Office, Government of Japan.

The group demonstrated remote operation and monitoring of a small unmanned ground vehicle (UGV) beyond the line-of-sight from the operator via a hovering drone up in the sky. The control communication link is continuously maintained with the layer 2-based fast access control technique, even when the relay route frequently changes due to the movement of the robots. The conventional techniques have problems in continuity every time the relay route changes and the communication link is disconnected, which results in momentarily losing control of the robot.

This technology will help to achieve tough robot systems operational in poor radio propagation environments caused by obstacles.

The achievement is supported by:

Impulsing Paradigm Change through Disruptive Technologies Program (ImPACT),
Cabinet Office of Japan
http://www.jst.go.jp/impact/en

Program Manager: Prof. Satoshi Tadokoro (Tohoku University)
Program Name: Tough Robotics Challenge
Project Name: Tough Wireless Technology for Tough Robotics
Project Leader: Dr. Ryu Miura (National Institute of Information and Communications Technology)
Project Period: FY 2015 – FY 2016

This project focuses on the R&D of tough wireless communication links for robot control to avoid disconnection in poor radio propagation environments.


Background

Remote control of field robots usually becomes difficult when the robots go beyond obstacles, such as thick walls, buildings, forests, or mountains, due to loss of line-of-sight radio propagation. Then the telemetry signals also get lost.

Conventional approaches have employed ad-hoc and multi-hop communication techniques (*1) in order to cope with the above problem, where a relay route via other robots helps to avoid disconnection from the target robot. However, the technique was originally designed for wireless Internet so that it is basically not suitable for robot control, that is, the control link is momentarily disconnected and the control stops every time the relay route changes.

Technology

The research group developed a layer 2-based wireless relay communication technology for the command/control and telemetry signals of a remotely-operated target robot out of the line-of-sight via other robots (Fig. 1).

The technology enables continuous operation of a robot out of the line-of-sight with simultaneous and redundant transmission of command/control and telemetry signals via multiple relay routes through other robots. We reconstructed the communication scheme from conventional ones such as that of wireless LAN and realized a new one dedicated to robot control on a relay transmission basis. The new scheme also employs a time-division multiple access (TDMA) control protocol to share the communication media among different robot terminals with small response latency and low packet collision probability, which gives an efficient use of time resource and constant freshness of the command/control and telemetry data.

The conventional communication schemes, mainly designed for Internet access, mostly carry out search and calculation to select the best relay route to transmit data, assuming unspecified relay nodes with small mobility. The new scheme removes the above procedures and implements a simplified procedure in layer 2, where the target robot receives the command/control and telemetry data via all of the possible routes with different TDMA slots, assuming a small number of specified relay nodes with high mobility. The target robot simply selects a signal with the best quality among those signals. With this technique, the response latency through one relay robot has been improved to about 50 msec (*2), compared to that of conventional schemes, the latency of which varies from several 10 msec to several 100 msec depending on the communication traffic conditions. Moreover, our technology gives continuity of relay connection even with the frequent and random change of the relay route due to the movement of the robot, so that we can avoid momentary disconnection of the control link, which ensures the stability of the control of the target robot (*3).

Fig.2 and Fig.3 show a series of prototypes of the wireless modules and the specifications, respectively, which uses 920 MHz band for both command/control and telemetry signals. NICT and AIST successfully demonstrated the validity of the technology by controlling a UGV in operation beyond the line-of-sight. A multi-rotor drone hovering at an altitude of 20-30m served as an aerial relay robot to connect the UGV to its operator. This is the first time that not only control of a UGV via a flying drone but also continuity of the connection even with the frequent and random change of the relay route was achieved in the world.

Future Plan

In the demo, the target robot to be controlled was a slow-moving UGV. In the next demo, we will try to replace the UGV with a multi-rotor drone that moves much faster.

The developed technology would be useful not only for robots in operation inside or close to buildings in disaster situations or in security applications, but also for aerial robots flying at low altitude for monitoring and transportation in mountain areas. It would also be the basis for the deployment of a cooperative and autonomous wireless network with multiple robots to make wireless control more reliable and safe.

Figures

Fig. 1 System overview
Fig. 1 System overview
The robots cooperate with each other to keep wireless control link continuously even beyond obstacles such as thick walls, buildings, trees, mountains, etc.

Fig. 2 Wireless module prototypes with a novel design in layer 2 for relay-based robot control.
Fig. 2 Wireless module prototypes with a novel design in layer 2 for relay-based robot control.

Fig. 3 Specifications.
Frequency 920MHz band
TX power < 20mW
Data rate 100kbps Max.
Size
(w/o antenna)
96mm×93mm×31.7mm
Weight
155g
(w/o battery)
Battery lifetime 7 hours
  Fig. 4 Relay module installed on a multi-rotor drone.
Fig. 3 Specifications.
(Common for operator and relay/target robot modules)
  Fig. 4 Relay module installed on a multi-rotor drone.

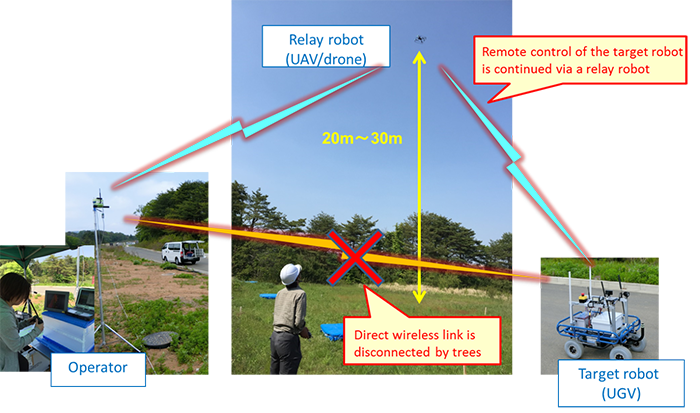

Fig. 5 Field demonstration test.
Fig. 5 Field demonstration test.
A UGV beyond the line-of-sight from the operator was successfully controlled and monitored via a hovering drone.
(May 18 and June 2, 2016 at Aobayama Campus, Tohoku University)


Contact

[About technology]
Ryu Miura, Ph.D.
Executive Researcher,
National Institute of Information and Communications Technology (NICT)
E-mail: Miura email address

Shin Kato, Ph.D.
Group Leader, National Institute of Advanced Industrial Science and Technology (AIST)
E-mail: Kato email address

[About ImPACT]
ImPACT Program Promotion Office, Cabinet Office
E-mail: ImPACT Program Promotion Office, Cabinet Office email address

[About ImPACT program and PM]
ImPACT Program Promotion Group, Japan Science and Technology Agency (JST)
E-mail: ImPACT Program Promotion Group, JST email address

[Press Office]
National Institute of Information and Communications Technology (NICT)
E-mail: NICT email address

National Institute of Advanced Industrial Science and Technology (AIST)
E-mail: AIST email address

Japan Science and Technology Agency (JST)
E-mail: JST email address

Glossary

*1
A communication scheme where the terminals connect each other autonomously and make relay connections via multiple terminals[ back ]
*2
This value is selectable by the priority between the response speed and the required data size.[ back ]
*3
The time to change the relay route is also within 50 msec and the data loss is therefore minimized.[ back ]
